Connex 350/500 3D Printer Support

Connex350

Please note this machine is approaching the End of Service cover. To learn more about our current portfolio and limited time discount offer click on the link for your region: EMEA or US

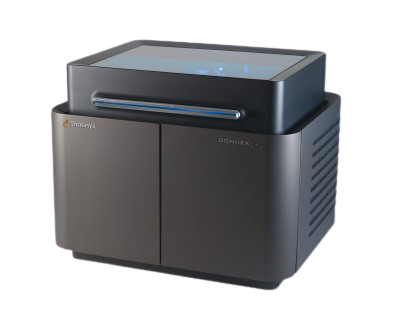

The Stratasys Connex 350-500 3D printer uses special technology to print models simultaneously with different model materials. Printing models with combinations of basic materials (digital materials) enables you to choose from a wide range of mechanical properties—from flexible to rigid—and colors. It is also possibly to print models made from different materials on the same build tray in the same print job and quickly alternate printing jobs using the model materials loaded.

The Stratasys Connex 350 has a build area of 340 x 340 x 200 mm (13.4 x 13.4 x 7.9 in).

The Stratasys Connex 500 has a build area of 490 x 390 x 200 mm (19.3 x 15.4 x 7.9 in).

    AC Power Requirements

  • 100–120 VAC, 50–60 Hz, 13.5 A, 1 phase
  • 220–240 VAC, 50–60 Hz, 7 A, 1 phase

    LAN Requirements

  • Required prior to printer installation.
  • LAN TCP/IP



5:41

Connex - Print head replacement

1:18

Connex - Waste Container Replacement
