Objet24/30 V3 Printers Family

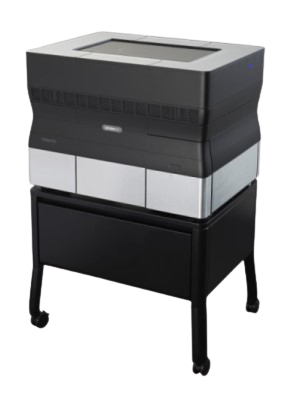

Objet30 V3 3D Printer

The Stratasys Objet24/30 V3 3D printer family produces three-dimensional models designed with most CAD tools and some other 3D applications. The Stratasys Objet24/30 V3 3D printer family printers feature the capability of producing different types of model files simultaneously. The Stratasys Objet24/30 V3 3D printer family printers can be set up as single-station systems or as multi-station systems.

The Stratasys Objet24 has a build size of 234 x 192 x 148.6 mm (9.21 x 7.55 x 5.85 in.). The Stratasys Objet30 Dental Prime has a build size of 300 x 200 x 100 mm (11.81 x 7.87 x 3.94 in.). The Stratasys Objet30 Prime has a build size of 294 x 192 x 148.6 mm (11.57 x 7.55 x 5.85 in.). The Stratasys Objet30 Pro has a build size of 294 x 192 x 148.6 mm (11.57 x 7.55 x 5.85 in.).

    AC Power Requirements

  • 100–120 VAC, 50–60 Hz, 7 A, 1 phase
    Or
    200–240 VAC, 50–60 Hz, 3.5 A , 1 phase

    LAN Requirements

  • Required prior to printer installation.





3:42

Head Optimization Wizard - Desktop


2:51

UV Lamp Intensity Calibration - Desktop
